SFP+ 10G 高速铜质线缆 |
|
|
SFP+ 10G DAC(PASSIVE) |
|
|
|
|
产品特性 |
|
Product Features |
|
|
·符合MSA SFF-8431规范 |
|
·Meet MSA SFF-8431 specification |
|
|
|
|
|
|
·支持高达10Gbps数据传输速率 |
·Supports serials data rates up to 10Gbps |
|
|
|
|
|
·热插拔抽换 |
|
|
·Hot pluggable |
|
|
|
|
|
|
|
|
·高性价比的有源光缆替代方案 |
|
·High cost effective to Fiber optics solution |
|
|
|
|
·低功耗 |
|
|
|
·Low power consumption |
|
|
|
|
|
|
|
·EMI辐射抑制设计 |
|
|
·Enhanced EMI suppression |
|
|
|
|
|
|
|
·差分阻抗100欧姆 |
|
|
·Differential impedance 100ohm |
|
|
|
|
|
|
|
产品应用 |
|
Applications |
|
|
·交换机/路由器/HBA |
|
·Switches / Routers / HBAs |
|
|
|
|
|
|
·服务器和存储设备 |
|
|
·Server & Storage Devices |
|
|
|
|
|
|
|
·数据中心网络 |
|
|
·Data Center Networking |
|
|
|
|
|
|
|
·企业存储系统 |
|
|
·Enterprise storage |
|
|
|
|
|
|
|
·高性能计算机 |
|
|
·High Performance Compute |
|
|
|
|
|
|
|
·10Gbs以太网 |
|
|
·10Gbs Ethernet |
|
|
|
|
|
|
|
|
·基站/BBU/RRU |
|
|
·Base Station / BBU / RRU |
|
|
|
|
|
|
|
SFF-8431 |
|
SFF-8431 |
|
|
系列：SFP+ |
|
Series:SFP+ |
|
|
·电缆长度：1.0/2.0/3.0/5.0/7.0米 |
·Cable Length:1.0/2.0/3.0/5.0/7.0 Meters |
|
|
|
|
|
·线径:30AWG/28AWG/26AWG/24AWG， |
·Wire Size:30AWG/28AWG/26AWG/24AWG, |
|
|
|
|
|
镀锡铜，外径:4.2/4.7/5.2/6.0MM |
Tinned Copper, OD:4.2/4.7/5.2/6.0MM |
|
|
|
|
|
|
|
·电镀：Au 30u" |
|
|
·Plating: Au 30u" |
|
|
|
|
|
|
|
·颜色：黑色电缆 |
|
|
·Color: Black Cable |
|
|
|
|
|
|
|
·符合环保要求：RoHS |
|
·Environmental Compliance: RoHS |
|
|
|
|
|
|
电气性能 |
|
Electrical Characteristics |
|
|
·电缆特性阻抗：100欧姆±10％ |
·Raw Cable Impedance: 100 ohm±10% |
|
|
|
|
|
|

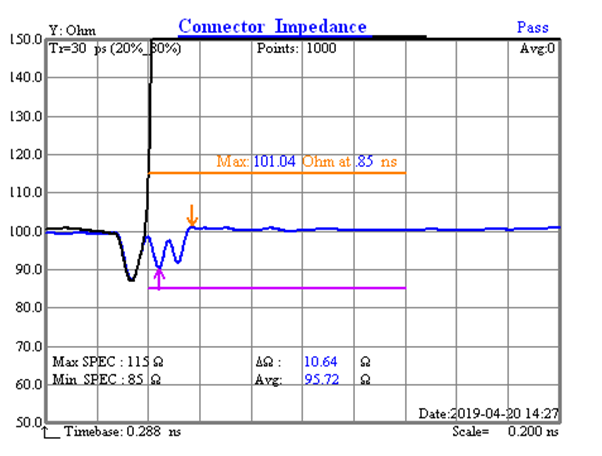

·电缆组件特性阻抗：100欧姆±20％ |
·Cable Assembly Impedance: 100 ohm±20% |
|
|
|
|
|
·差分对内延迟：﹤35ps |
|
·Intra-pair Skew: ﹤35ps |
|
|
|
|
|
|
|

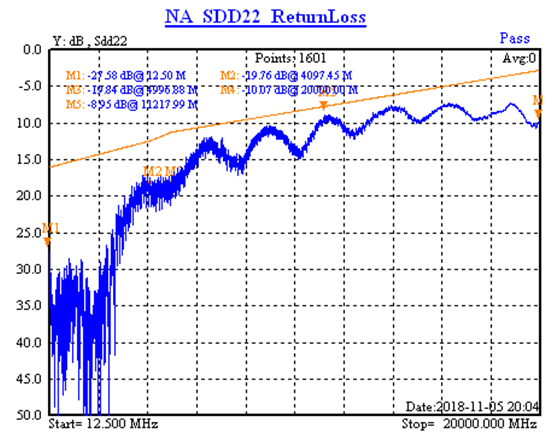

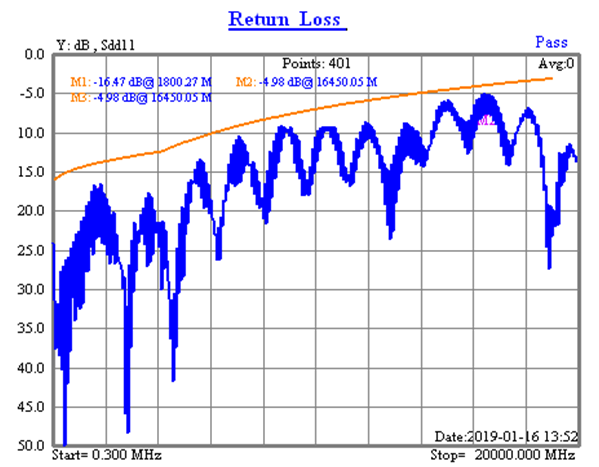

·回波损耗：﹤-11dB（10Mhz to 4.1Ghz）； |
·Return Loss:﹤-11dB（10Mhz to 4.1Ghz）； |
|
|
|
|
|
﹤-7dB（4.1Ghz to 11.1Ghz） |
﹤-7dB（4.1Ghz to 11.1Ghz） |
|
|
|
|
|
|
·衰减：8.4dB/3M Max.@1.25Ghz |
·Attenuation: 8.4dB/3M Max.@1.25Ghz |
|
|
|
|
|
10dB/7M Max.@1.25Ghz |
10dB/7M Max.@1.25Ghz |
|
|
|
|
|
·串扰：﹤-26dB（10Mhz to 6Ghz）； |
·Crosstalk:﹤-26dB（10Mhz to 6Ghz）； |
|
|
|
|
|
﹤-20dB（6Ghz to 10Ghz） |
|
﹤-20dB（6Ghz to 10Ghz） |
|
|
|
|
|
|
|
|
|
|

|
|
|
|
忠佑电子 SFP+高速铜质电缆是应用在10GEthernet、8GFiber channel和Infiniband短距离互连场景， |
|
|
|
|
|
取代有源光缆传输的高性价比高速传输解决方案。 |
|
|
|
|
|
|
|
|
|
|
SFP+高速铜质电缆可满足硬件通信设备和数据中心在低成本、低功耗要求下达到高密度端口的配置。 |
|
|
|
|
|
HST SFP+ DAC完全符合MSA规范要求的信号完整性性能,也可根据客户特殊规格要求定制。 |
|
|
|
|
|
|
HST’s SFP+ DAC are high speed, cost effective alternative to fiber optics solution in Ethernet, |
|
|
|
Fiber channel and Infiniband applications. |
|
|
|
|
|
|
|
|
|
SFP+ DAC enable hardware OEMs and data center operators to achieve high port density at low cost |
|
|
|
and reduced power requirement. |
|
|
|
|
|
|
|
|
|
|
HST SFP+ DAC meets the industry MSA for signal integrity performance, can also customize based on special require. |
|
|
